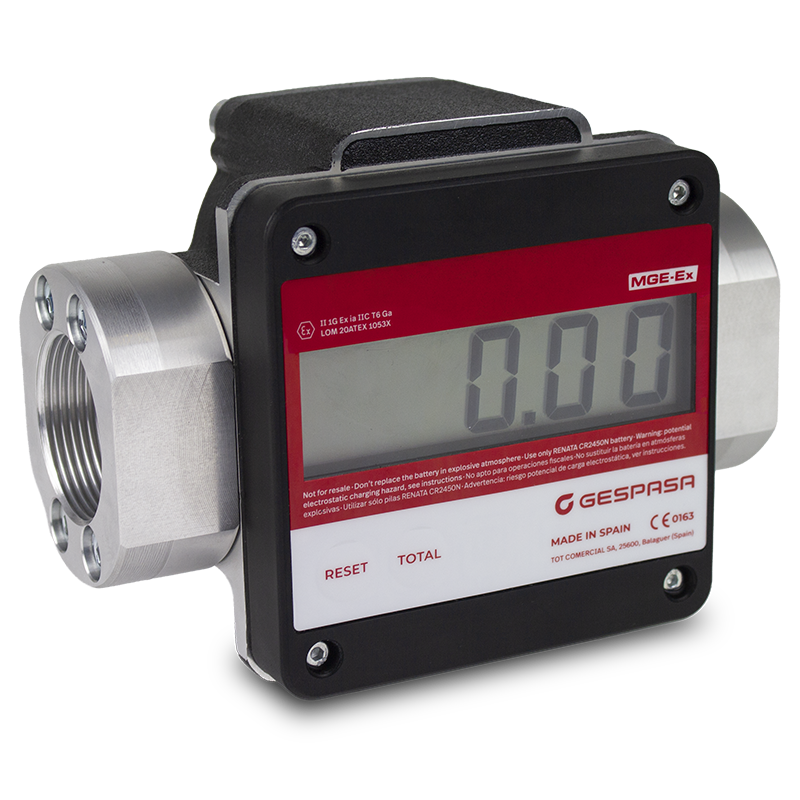

MGE-250-Ex

10-250 l/min · ±0.5% · 1" or 1 ½" F · ATEX

Petrol

Diesel

Lubricant

NEW

Product details
Features

For private use and suitable for measuring diesel, petrol, biodiesel, aviation fuel and other liquids compatible with the construction materials of the equipment. Certified for use in explosive atmospheres containing gases up to Group IIC.

High-precision measurement using oval gears

Display of total litres dispensed or volume unit in use

Display: 3 digits and 2 decimal places (999.99), 4 digits and 1 decimal place (9999.9) or 5 digits (99999)

Calibration parameters and totaliser saved in non-volatile memory

This meter has been designed and certified for installation in hazardous areas (Group II) classified as Zone 0, Zone 1 and Zone 2, in accordance with standard EN 60079-10-1

Due to its T6 temperature classification, the equipment is suitable for atmospheres with a self-ignition temperature exceeding 85 °C. The user must ensure that the characteristics of the fluid and the environment match the device’s EPL protection level.

More Less
Technical data

Flow
:
10-250 l/min (gasoil/essence) 10-150 l/min (lubricant)

Accuracy
:
±0.5 %

Pressure
:
45 bar

Ambient Temperature
:
-10 ºC / +40 ºC

Fluid viscosity
:
2-2,000 cSt

Connection
:
1" or 1 ½" F BSP flange

ATEX category
:
II 1G

ATEX marking
:
Ex ia IIC T6 Ga

EU Type Certificate
:
LOM 20ATEX1053X

More Less
Components

Aluminium body

Digital liquid crystal display (LCD)

Control push-buttons (Total and Reset)

Long-life button cell battery (approx. 4 years)

Low battery indicator

More Less
Funcionalidades

The ATEX certification marking is permanently engraved on the front panel of the equipment. Users are responsible for verifying that the classification (group, category, gas mixture and temperature class) is compatible with the safety requirements of their installation and the specifications of their order.

The equipment is subject to specific conditions of use, which are described in the instruction manual.

If you detect any discrepancy between the physical marking on the equipment and the requested technical requirements, do not proceed with installation or commissioning and contact TOT COMERCIAL SA immediately to resolve the issue.

Dimensions and weight
Product dimensions (approx.)

Length
:
183 mm

Width
:
107 mm

Height
:
140 mm
Net weight (approx.)

2.3 or 2.5 kg

Models and references

MGE-250-Ex · 1"

32507-CF00000

MGE-250-Ex · 1 ½"

32507-CF00001
