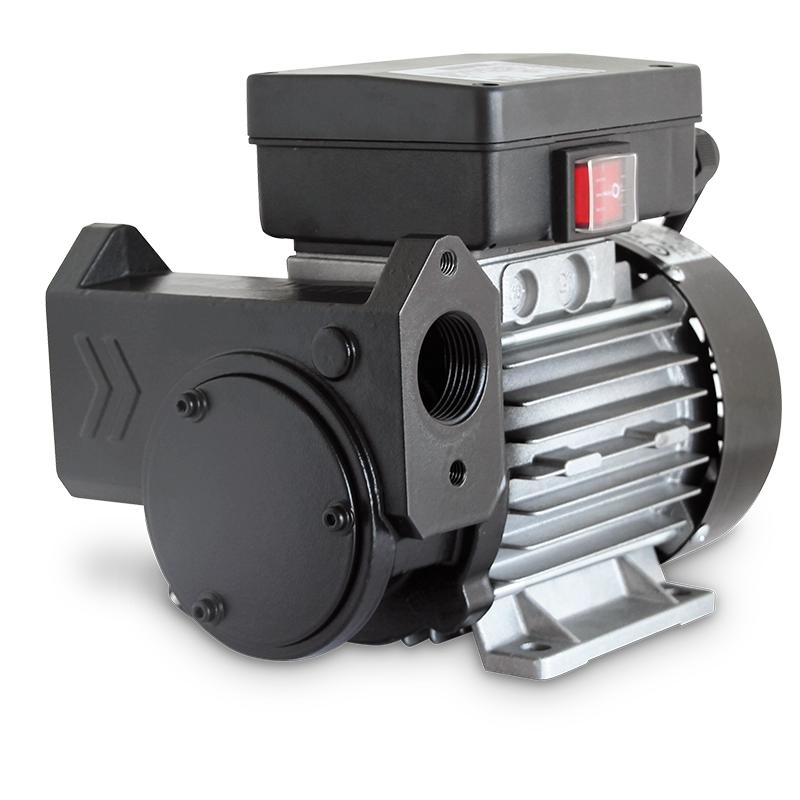

• IRON-75 230 VAC

    IRON-75 230 VAC

    Self-priming electric pump for transferring diesel | 0.5 kW | 75 l/min

    Diesel Diesel
    Biodiesel Biodiesel

    • Product details

      Features

      • Self-suction - self-priming pump
      • Eccentric with self-adjusting blades
      • Rust treatment
      • Suitable for diesel transfer (ask for other liquids)
      More

      Technical data

      • Free flow
        :

        75 l/min

      • Motor
        :

        0.5 kW · 50/60 Hz

      • Consumption
        :

        1.9-4.5 A

      • Operation
        :

        S1 continuous

      More

      Components

      • Recirculation bypass valve
      • Thermal protector
      • Self-ventilated motor
      • ON/OFF switch
      More

    • Dimensions and weight

      Product dimensions (approx.)

      • Length
        :

        225 mm

      • Width
        :

        146 mm

      • Height
        :

        185 mm

      Net weight (approx.)

      8.5 kg

      Packaging dimensions (approx.)

      • Length
        :

        240 mm

      • Width
        :

        180 mm

      • Height
        :

        260 mm

      Gross weight (approx.)

      9.1 kg

    • Models and references

      IRON-75 230 VAC
      00350-CF00000
      IRON-75 230 VAC + 1" automatic pump stop Kit
      00350-CF00010
      IRON-75 230 VAC · VITON · B100
      00350-CF00100
      IRON-75 230 VAC · VITON + 1" automatic pump stop Kit
      00350-CF00101

    • Accessories and optional spare-parts

      F1" aluminium flange kit
      800003022

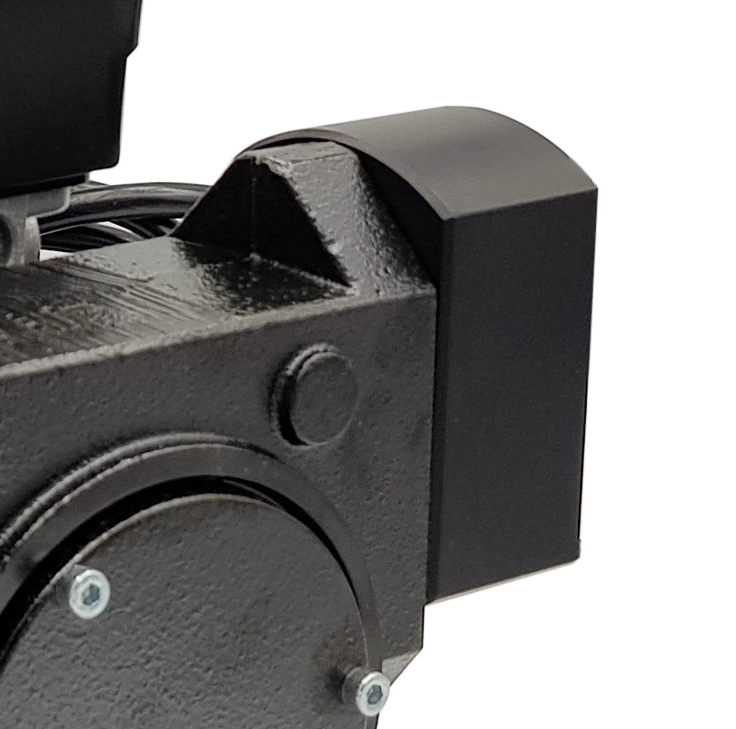

      1" automatic pump stop Kit
      004000000

    • Downloads

      Technical Data Sheet · IRON-75 230 VAC
      Brochure · Self-suction Pumps
