Diesel Pumps

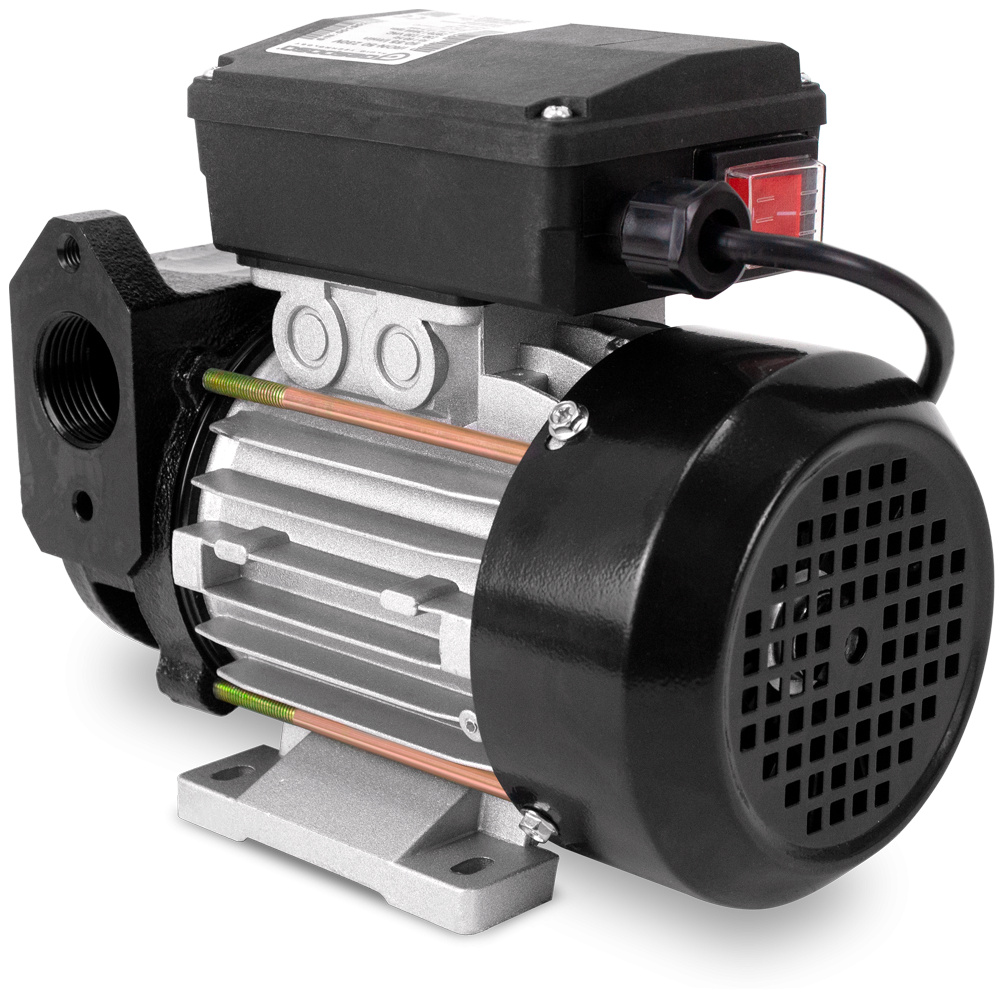

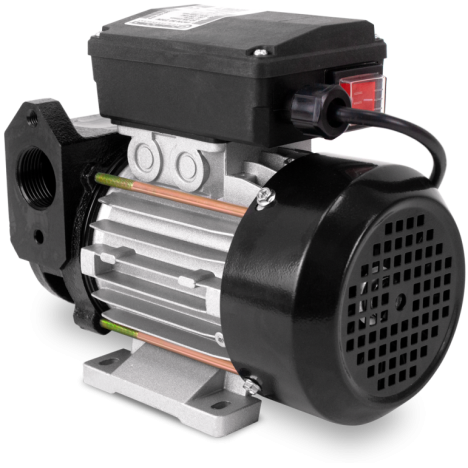

IRON-50 230 VAC

Self-priming electric pump for transferring diesel | 0.25 kW | 50 l/min

Diesel

Biodiesel

Product details
Features

Self-suction - self-priming pump

Eccentric with self-adjusting blades

Rust treatment

Suitable for the diesel transfer (ask for other liquids)

Agricultural, building, public work and industrial uses

More Less
Technical data

Free flow
:
50 l/min

Motor
:
0.25 kW · 50/60 Hz

Consumption
:
230 VAC: 1.2-2 A · 110 VAC: 5-7 A

Operation
:
S1 Continuous

Motor speed
:
3,000 rpm (50 Hz) · 3,600 rpm (60 Hz)

Protection
:
IP-55

Pressure
:
2-2.5 bar

Max. suction length
:
2.7 m

Priming pipe suction
:
5 m

Ambient Temperature
:
-20 ºC / +50 ºC

Connection
:
F1" BSP flanges and threads

More Less
Components

Recirculation bypass valve

Thermal protector

Self-ventilated motor

ON/OFF switch

Stainless steel filter of 350 μm (micron)

3 m electric cable with homologated plug

More Less

Dimensions and weight
Product dimensions (approx.)

Length
:
225 mm

Width
:
146 mm

Height
:
185 mm
Net weight (approx.)

8.5 kg
Packaging dimensions (approx.)

Length
:
240 mm

Width
:
180 mm

Height
:
260 mm
Gross weight (approx.)

9.1 kg

Models and references

IRON-50 230 VAC

00190-CF00000

IRON-50 110 VAC

00192-CF00000

IRON-50 230 VAC · VITON · B100

00190-CF00100

IRON-50 230 VAC + 1" automatic pump stop Kit

00190-CF00010

IRON-50 110 VAC + 1" automatic pump stop Kit

00192-CF00010

IRON-50 230 VAC · VITON · B100 + 1" automatic pump stop Kit

00190-CF00102

Accessories and optional spare-parts

F1" aluminium flange kit

show image

800003022

1" automatic pump stop Kit

show image

004000000

Downloads

Technical Data Sheet · IRON-50 110/230 VAC

Brochure · Self-suction Pumps
