BDN-400 PNEUMATIC MANUAL OR ELECTRONIC NOZZLE

Liquids: Lubricant Lubricant

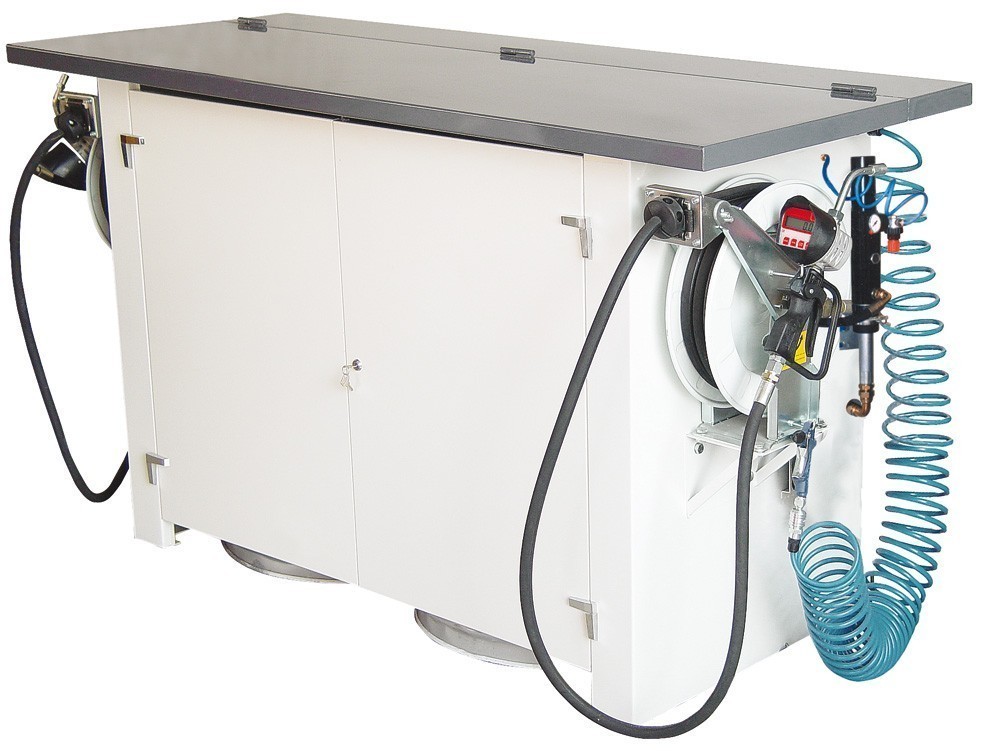

BDN-400 · Pneumatic workbench with two PG-40 hand control valves 20280
BDN-400E · Pneumatic workbench with two PMGE-40 complete electronic oil control valves 20170
  • Innovator workbench with dispenser kit for two types of lubricant that allows the supply of both products from the same operation site.
  • Capacity to have 2 barrels of 200 litres.
  • Modern lubricant dispenser with 2 doors and security lock. The newest open system of the workbench upper part (worktop) makes easier the barrel replacement.



Equipped with:

  • 2 hose-reels with 8m R1 Ø1/2" hose with adapters on both ends
  • 2 PMGE-40 complete electronic oil control valves with 60º rigid outlet and non-drip end or 2 PG-40 hand control valves
  • 2 suction kits for barrels of 200 litres
  • 2 GM-3 ratio 1:3 pneumatic pumps
  • 2 air regulators with valve built-in
  • 2 compressed air outlets



* It has to be connected to a compressed air connection

BDN-400 BDN-400
