PG-40 · MANUAL 20 l/min

Print
Liquids: Lubricant Lubricant

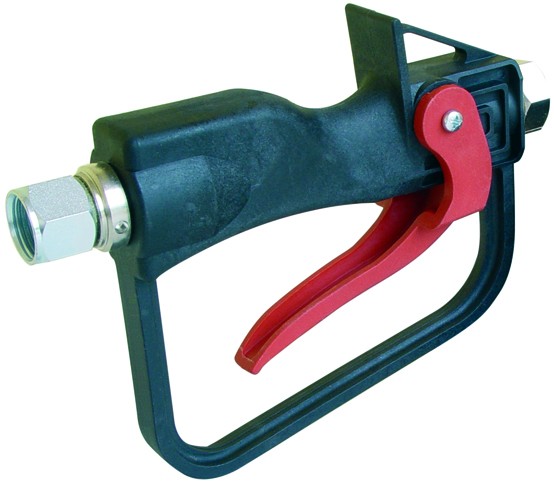

PG-40 · Manual nozzle 47352

Ergonomic nozzle-meter with hand protector. It avoids the accidental
trigger opening. It is made of high resistance plastic with fibreglass.



  • Flow: 20l/min of continuous supply
  • F1/2" GAS (BSP) rotary swivel
  • "Quick exchange" ACR system of the different type of outlets
  • Maximum pressure: 80bar (security pressure)
  • Maximum operation pressure: 50bar
PG-40 · MANUAL

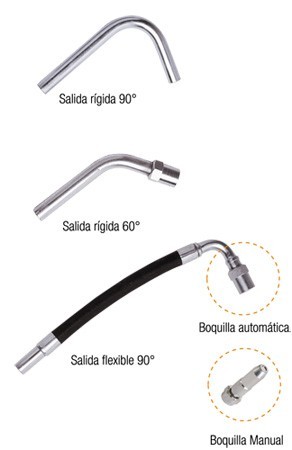

OUTLET TYPES

Quick exchange without threads.

- 90º rigid outlet with free flow 473502003
- Flexible tube with 90º rigid outlet and automatic non-drip end 473502005
- 60º rigid outlet with automatic non-drip end 473502002
- Automatic non-drip end for the different type of outlets 473002002
- Flexible tube with 90º rigid outlet and manual non-drip end 473502105
- 60º rigid outlet with manual non-drip end 473502106
- Manual non-drip end for the different type of out 473600000
& Opcional TIPUS DE SORTIDA PG40 I PMGE40
