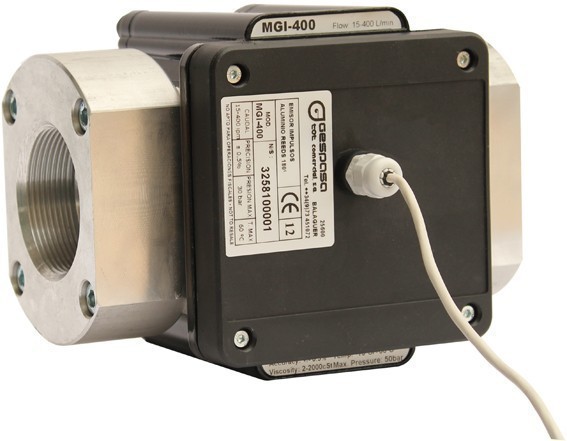

MGI-400 · PULSER 11 pulses x litre · 0.5% · F2" BSP

Liquids:

Diesel

Lubricant

MGI-400 · Pulser	32580
Pulser for its in-line assembly, making easier the exact information of the fluid management and control systems. Technical data: Flow: 20-400 l/min Channels: 2 · Channel lag: 180º Pulses per channel: 5.5 pulses/l Maximum pressure: 30 bar Break pressure: 50 bar Min./Max. temperature: -10 / +60 ºC Accuracy: ±0.5 % Inlet/outlet connection thread: Flange 2" BSP Two communication channels through REEDS Pulses: 11 per litre · 5.5 per channel
Size and weight (approx.):
Dim.: 191x150x170 mm (length x weight x height) Weight: 7,9 kg
