SGLP LPG commercial dispenser

Print

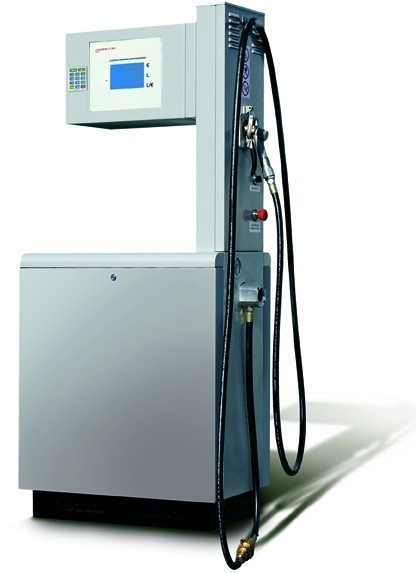

SGLP · LPG commercial dispenser

LPG commercial dispenser compatible with the main management systems of the service stations.

This dispenser is designed to be installed under roof, shelter or in an open space.



Composed of:

  • Keyboard with preset system
  • Electronic counter
  • Supply nozzle



Technical parameters:

  • Product number: 1
  • Nozzle number: 1 or 2
  • Max. flow intensity: 45 l/min
  • Min. flow intensity: 9 l/min
  • Minimum supply: 5 l
  • Installation class: ±1 %
  • Max. operation pressure: 2,5 MPa
  • Connections: 3/4"
  • Power: 230 VAC 50 Hz
  • Operation temperature: -25 ºC / +55 ºC
SGLP
