TOTEM Supply Kits

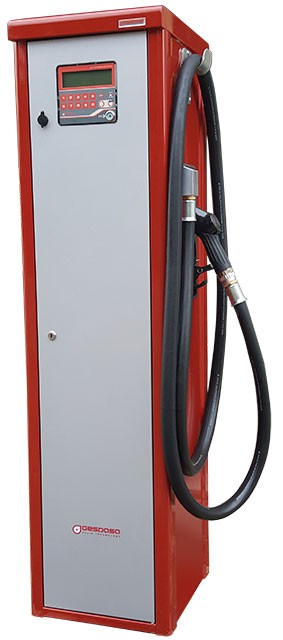

TOTEM 88Plus 0.74 kW · 230 VAC 80 l/min · ±0.5%

Liquids: Diesel Diesel
TOTEM 88Plus-60 users · Electronic supply kit with DIESELPLUS software 27222
TOTEM 88Plus-130 users · Electronic supply kit with DIESELPLUS software 27223
TOTEM 88Plus-1000 users · Electronic supply kit with DIESELPLUS software 27225
  • The TOTEM PLUS electronic supply kits with GK-7PLUS own consumption controller are suitable for the diesel supply, measurement, and control for own consumption vehicles.
  • The GK-7PLUS controller allows the supply only to authorized personnel and memorizes all the services which the users and/or the vehicles do. The supply kit has the Internet connection. The user can manage the dispenser data like users, vehicles, and done supplies from any PC, which is connected to the Internet, entering into the control web site www.dieselplus.net with a user name and a password.



It is composed of:

CHASSIS

  • Column for its direct fixation to the ground without bases or additional accessories
  • Made of steel
  • Special interior and exterior treatment against corrosion
  • Brilliant expoxid paint
  • Weatherproof

PUMP

  • AG-88 0.74 kW 230 VAC self-suction pump with self-adjusting blades
    • Flow: 70-80 l/min

SOFTWARE

  • DIESELPLUS · The online service does not need the application installation. This can be used from any computer connected to the Internet at any moment.

NOZZLE

  • PA-80 automatic (swivel included)

HOSE

  • 4 m Ø25 mm antistatic delivery diesel hose double layer, with adapters in both ends



Size and weight (approx.):
  • Dim.: 400x400x1500 mm (length x width x height)
  • Weight: 55 kg
TOTEM 88Plus
OPTIONAL ACCESSORIES
- GK-7 identification key (pack of 10 units) 251201002
- PC memory key converter 251208003
