Fuel

Supply kits with GK-7 controller

Back
SHK-130C 1 kW · 230/400 VAC 130 l/min · ±0,2 %

Print
Liquids: Diesel Diesel  Petrol Petrol
130 l/min

Without printer
SHK-130C · 130 users · 500 services - triphasic 26450
SHK-130C · 1000 users · 1000 services - triphasic 26460
With thermal printer
SHK-130CIT · 130 users · 500 services - triphasic 26451
SHK-130CIT · 1000 users · 1000 services - triphasic 26461
  • Supply kits with ATEX components, special for installations of diesel, petrol kerosene supply.
  • This kit is composed of high accuracy hydraulic group and the GK-7 own consumption controller.



Composed of:

CHASSIS:
  • Made of steel
  • Special interior and exterior treatment against corrosion
  • Brilliant epoxid paint finish
  • Weatherproof

HYDRAULIC GROUP composed of:

  • Pump: Self-suction, eccentric with self-adjusting blades with gas separator. Flow: 130 l/min · Recirculation bypass valve, check valve, filter
  • Meter: made of aluminium of 4 pistons with positive displacement · Accuracy: 0,2 % · Pulser of 2 channels of 200 pulses per litre · Mechanical totalizer
  • Motor: 1 kW 230/400 VAC · motor EExd with ATEX certificate · triphasic · IP-55 protection

CONTROLLER:

  • GK-7 own consumption



It is supplied with:

  • 4 m delivery diesel hose Ø25 mm double layer, with 1" adapters in both ends
  • PA-120 automatic nozzle with rotary swivel


Size and weight (approx.):
  • Size: 720x400x1.500 mm (length x width x height)
  • Weight: 103 kg

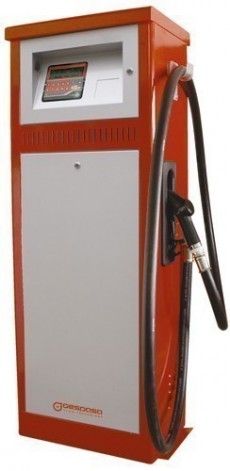

SHK-130C
Optional
- 500 W ON-LINE UPS 805001002
- PA-80 automatic nozzle for unleaded petrol 47251
- 4 m antistatic unleaded petrol hose Ø19 mm with adapters on both ends 803406009
- FG-2 microfilter · capacity 2 litres · microfiltration of 5 µm (micron) 39021
- FG-10 microfilter · capacity 10 litres · microfiltration of 5 µm (micron) 66050
- 804 · BSP 1'' · ''breakaway'' fireproof valve 805604015
- Flexible suction tube for supply kit with 2'' flange 807610002
- GK-7 identification key (pack of 10 units) 251201002
- GK-7 memory key (red) 251201001

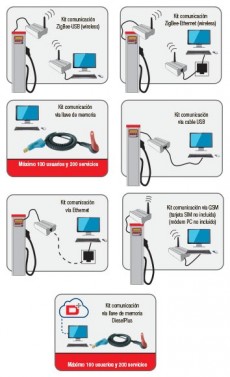

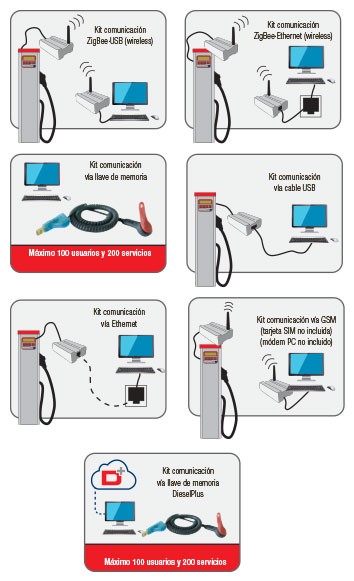

- Communication kit via MEMORY key (software + converter + 1 memory key) 257120000
- Communication kit via CABLE USB (software + converter) 257160000
- Communication kit via ETHERNET (software + converter) 257130000
- Communication kit via GSM (software + converter) 257140000
& Opcional compartit SHKs
