Pressure groups

Back

DOUBLE

Liquids:

Diesel

Pressure diesel groups equipped with self-suction gear pumps with built-in security system
Security system that stops the group in the event of an air inlet, fuel lack or leakage
Double action pressure switch (work + security)
Built-in security valve by overpressure. This cancels the breaking possibility because of the pumps

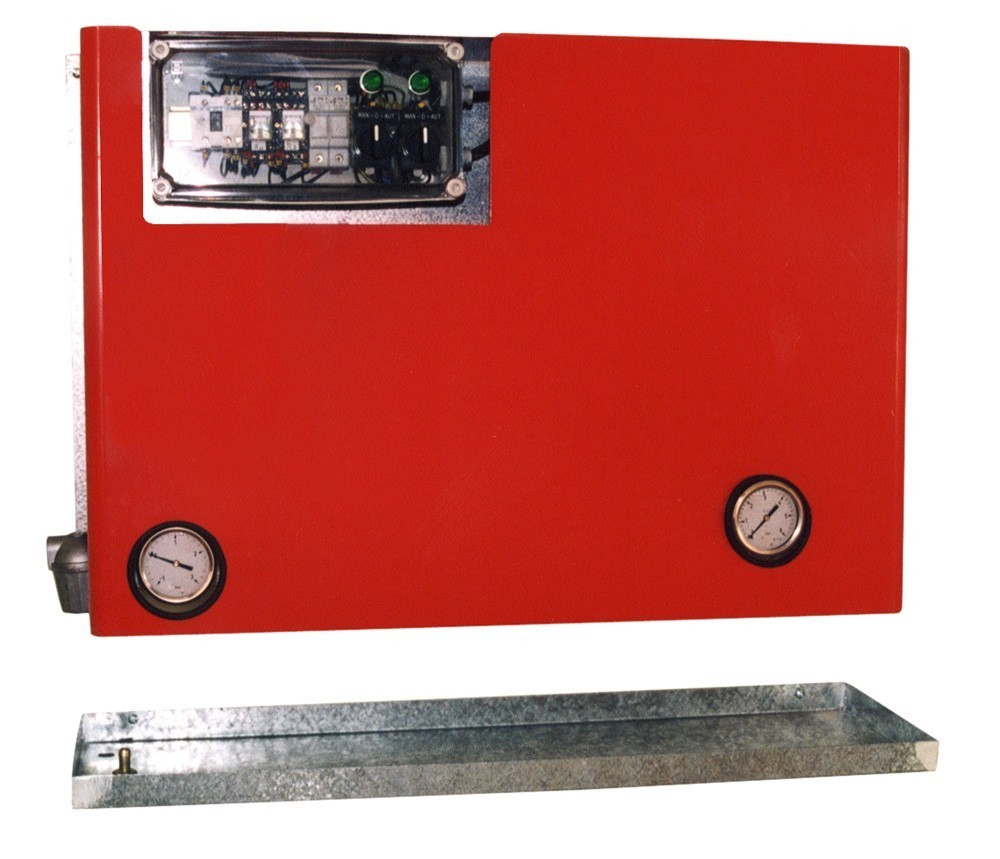

These groups are cased and they have a metallic drip pan
Filter in the suction
Quick shutoff valve in the delivery
Maximum suction height: 7m with foot valve
IP-55 protection

The Double Groups have also built-in:

Vacuum gauge that shows if there is any trouble on the suction circuit
Electric control frame with manual selector, with pump alternation and total electric protection
Security valve with conducted escape, with independence of that the pump has built-in

GESPOIL-100

24230

GESPOIL-300

24240

GESPOIL-500

24250

	Flow	Power	Connection	Voltage	Pressure
GESPOIL-100	100 l/h	58W	3/8"	230VAC	1-6bar
GESPOIL-300	300 l/h	0,25kW	3/8"	230VAC	1-10bar
GESPOIL-500	500 l/h	0,37kW	3/4"	230/400VAC	1-10bar

TOT COMERCIAL, S.A. declares that the PRESSURE DIESEL GROUPS comply with the general requirements as regards the operation security in accordance with the Community Guidelines 89/392, 73/23, 89/366 and their subsequent modifications so as the Royal Decree 1427/1997, of September 15th, 1997, for which is approved the MHP 03 Complementary Technical Instruction "Oil Installation for own consumption", being the motor protection IP-55, as IEC 34-5, DIN VDE 0530 part 5 and EN-60034-5.
