MINI 88E 70-80 l/min · ±0.5 %

Print
Liquids: Diesel Diesel

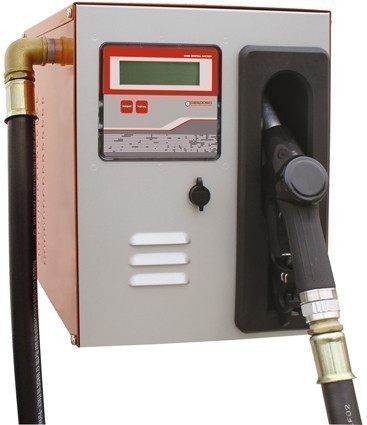

MINI 88E · MINI electronic supply kit 28091

The MINI electronic supply kit is suitalbe for supplying and measuring diesel for own consumption vehicles.



It is composed of:

CHASSIS

Composed of:

CHASSIS:

  • made of steel
  • interior and exterior treatment to protect against corrosion
  • high epoxid brilliant paint
  • weatherproof

PUMP:

  • AG-88 0.74 kW 230 VAC self-suction pump with self-adjusting blades

METER:

NOZZLE:

  • PA-80 automatic (swivel included)

HOSE:

  • 4 m Ø25 mm antistatic delivery diesel hose double layer, with adapters in both ends
Size and weight (approx.):
  • Dim.: 300x310x360 mm (length x width x height)
  • Weight: 26 kg

Optional:
- Hexagonal pedestal base (MINI) (height 1 m) 800400014
- F1'' aluminium flange kit 800003029
