FG-2BIO 25 µm (micron) · 105 l/min F1" BSP

Print
Liquids: Biodiesel Biodiesel

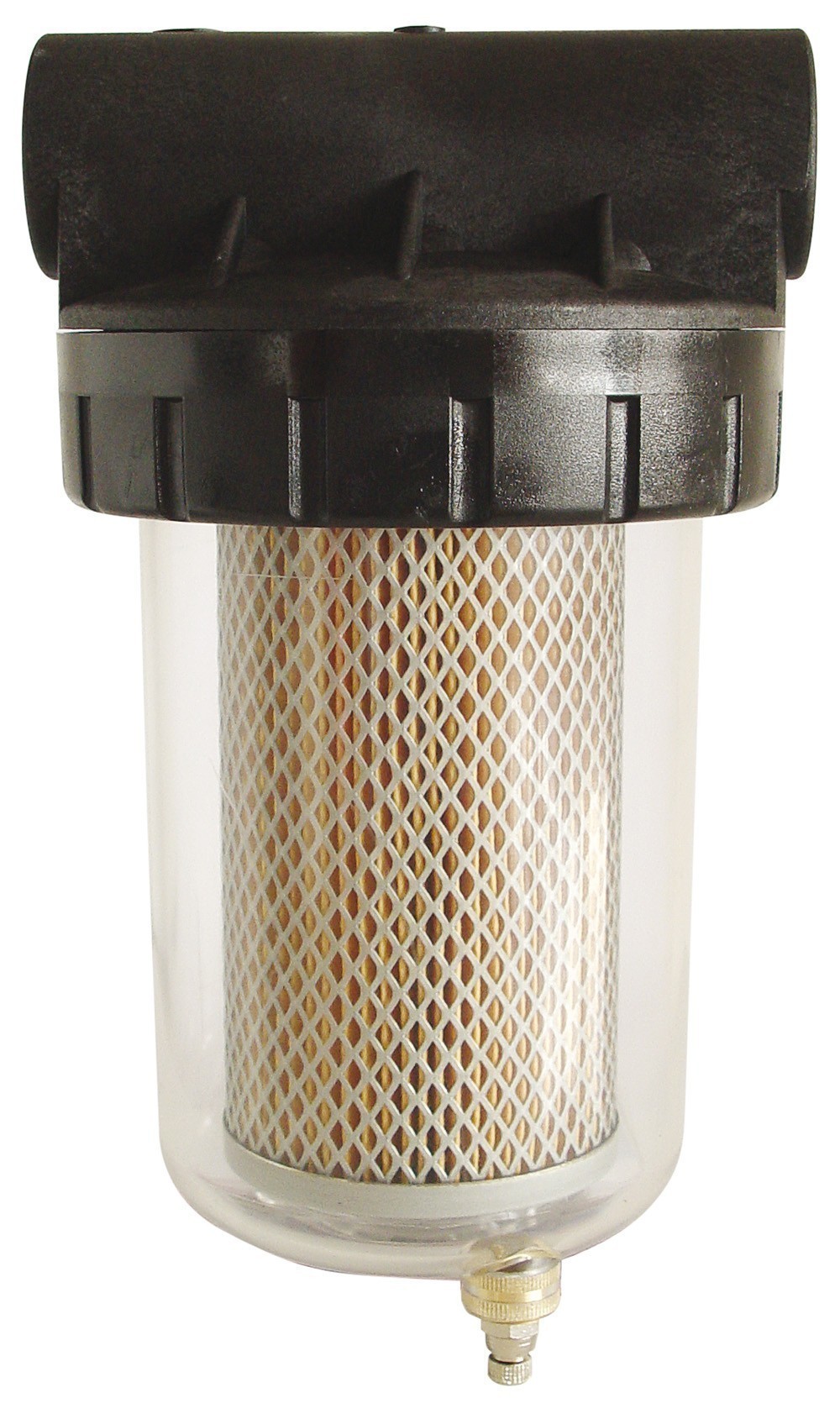

FG-2BIO · Transparent micro-filter of 2 litre capacity 39022
  • Capacity: 2 litres
  • Diesel Filtration: 25 µm (micron)
  • Transfer capacity: 105 l/min
  • Upper micro-filter housing: Plastic with F1" BSP metallic connections
  • FG-2BIO Housing: transparent plastic
  • Inlet / Outlet: F1" BSP
  • Filtering capacity: 500.000 litres (normal conditions)
  • Installation: On the pumping kit suction
  • Manual drain valve in the vessel to empty the impurities
  • It is supplied with a picture box with EAN-13 bar code and with a key for replacing the cartridge.
Size and weight (approx.):
  • Size: 175x280 mm (Ø x height)
  • Weight: 1,85 kg
Optionals:
- Cartridge replacing key 660705000
- 25 µm (micron) paper filtering element spare kit (biodiesel) 660708002
FG-2BIO
