Gespasa · Fluid Technology · / Fuel / Meters / Enllaçat a MGI110BLUE

Meters

Back

MGI-110BLUE 10-110 l/min 1" PVC

Liquids:

Urea

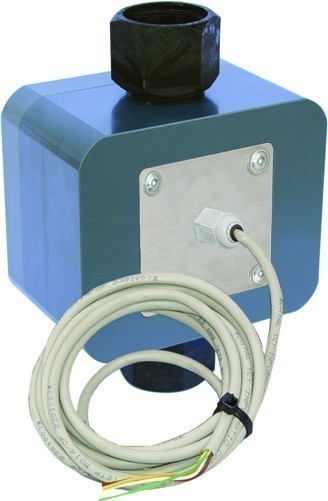

MGI-110 BLUE 1" · Pulser

32630

USE

Pulser for its in-line assembly, making easier the exact information of the fluid management and control systems.

Technical data:

Flow: 10-110 l/min
Accuracy: ±0.5 %
Min./Max. temperature: -10 / +60 ºC
Max. Humidity: 95 HR
Maximum pressure: 5 bar · Break pressure: 10 bar
Inlet/outlet connection thread: F1" GAS (BSP) with PA adapters
Two communication channels through REEDS (optionally Hall effect)
Pulses: 82 per litre · 41 per channel
