AUTOMATIC High flow · 10 or 15 m · Ø3/4" or 1"

Print
Liquids: Diesel Diesel
EGC-10 1'' · High flow hose-reel with 10 m Ø1'' hose 807303023

Weight: 29 kg
EGC-10 3/4'' · High flow hose-reel with 10 m Ø3/4'' hose 807303022

Weight: 27,5 kg
EGC-15 3/4'' · High flow hose-reel with 15 m Ø3/4'' hose 807303021

Weight: 30 kg
EGC-SM 1'' · High flow hose-reel without Ø1'' hose 807303020

Weight: 21 kg

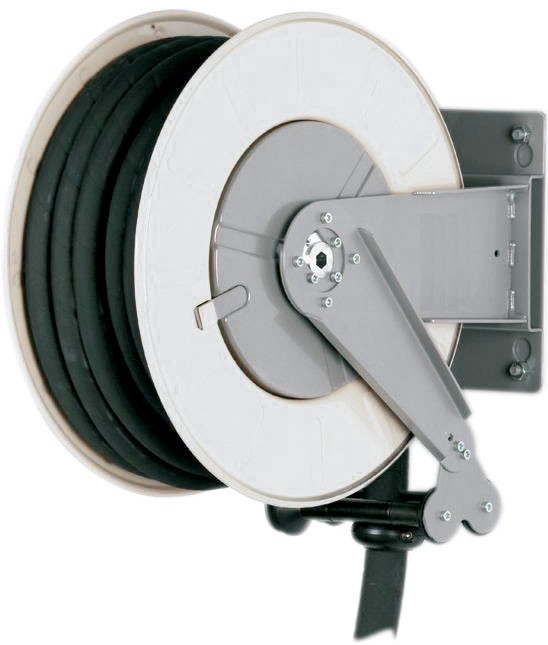

  • Metallic enameling and painted steel automatic hose-reel
  • With and without hose
  • 10 or 15 m antistatic double layer hose
  • Rollers in the hose delivery for a correct hose auto-location
  • The delivery arm can be mounted in different positions.
  • Max. hose-reel pressure: 40 bar · Hose pressure: 10 bar




AUTOMATIC
