- The fuel dispenser is designed and manufactured for the fuel supply and it is equipped with a supply point. This kit has built-in an accuracy measuring system and a special electronics that shows the supplied litres and the supply amount.

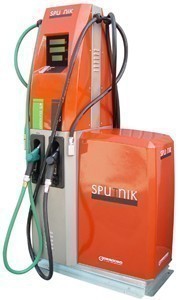

- The fuel dispenser is available in four different versions of chassis: Estilo, Tecno, SPUTNIK and Blue. The chassis can be made in stainless steel, carbon steel or fibreglass, according to each piece and version.
- The fuel dispenser has one or many hydraulic groups with model approval, composed of a pump with degasifier and one or two piston meters for each hydraulic group that guarantees an accuracy in the measuring of ±0,2 %. Each meter has an encoder that transmits pulses to the electronics.
- The fuel dispenser also has one or some supply points into the same compact unit, which allows a best profit of the fuel dispenser interior space. Each one of the supply points is composed of a hose with a tensor that allows maintaining the hose picked up at any moment.
- It has one or two electronics. These are GESPASA mark, EM-1 model, and they have an hydraulic and electronic technology more adequate to get the required trustworthiness by our customers.
- It is suitable for service stations, cooperatives, transport companies, ...
- The electronics is composed of 3 displays that show:
- Price per litre
- Total amount
- Supplied litres
Avant-garde electronics
- Luminous display of high size that makes easier the quantity vision;
- Minimum supplied amount presence of 15 minutes if the lights have gone out;
- Possibility of litre or amount preset;
- Three preset keys: x1, x10, RESET;
- Mechanical and Electronic totalizer;
- Communication protocol with controller/computer;
- Possibility of changing the fuel price form the own dispenser or a controller;
- High trustworthiness;
- The electronics can control up to 4 hoses;
- The electronics is installed into a watertight head.
Trustworthy and guaranteed accuracy meter
- Piston meter with electronic pulser with error control;
- Accuracy: 0,2 % (5-80 l/min);
- Adjustment through a sealed wheel;
- Pulser of 2 channels with a resolutions of 100 l/min;
- Mechanical totalizer.
Hydraulic pump with gas separator
- Self-suction blade pump with air separator and a filter in the suction;
- Standard flow: 50-80 l/min
- Steel mesh of easy access and (clean and reused);
- Motor: 1 kW S1 230/400 VAC 50/60 Hz three-phase EExd with ATEX certificate and IP-55 protection;
- Driving belt with automatic tensor.
Structure
Diesel
Petrol
