Family selection

Accessories

SPILL CONTAINERS

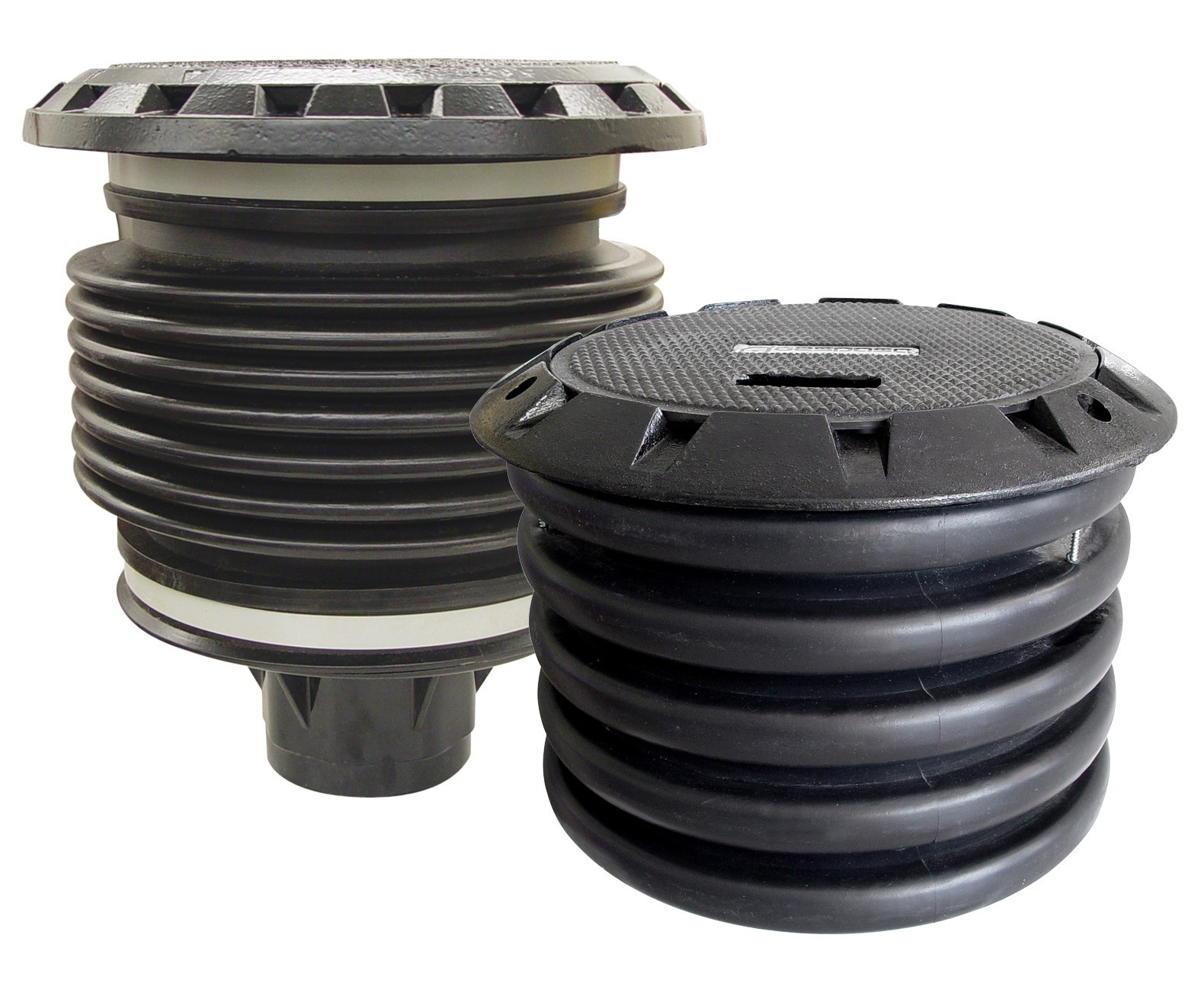

SPILL CONTAINERS WITH STEEL COVER

The spill manhole container is designed to prevent the product spill near filling connections and vapour outlet in buried storage tanks during a normal filling operation. It helps to prevent the soil contamination and ground water pollution. Easy installation. Its flexible structure allows a good adaptation in all type of terrains. It allows to drain the container product into the buried tank. Capacity: 19 litres
4'' spill container with Ø360 mm steel cover	808313004
4'' spill container with Ø410 mm steel cover	808313005
Materials: Cover: cast iron Mounting ring: Cast iron Bellow: Polyethylene Base: Compound fiber Clamps: Stainless steel Seals: Buna-N

SPILL CONTAINERS WITH STEEL COVER

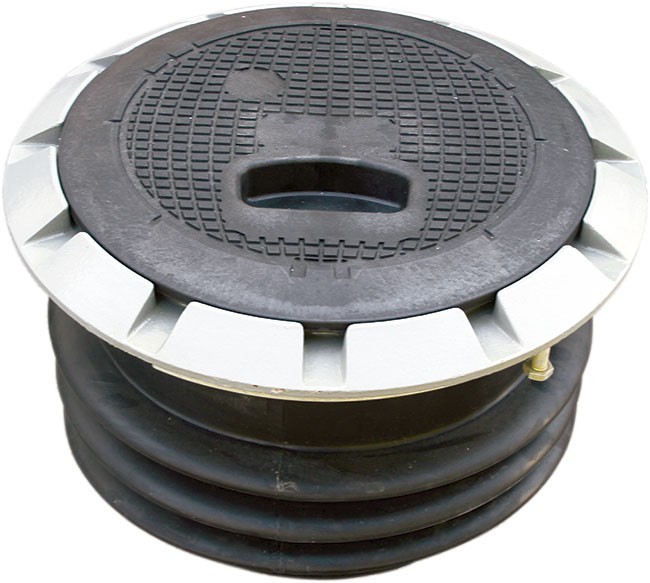

SPILL CONTAINERS WITH FIBER COVER

4'' spill container with Ø360 mm fiber cover	808313001G
Materials: Cover: polyamuide with fibreglass Mounting ring: Cast iron Bellow: Polyethylene Base: Compound fiber Clamps: Stainless steel Seals: Buna-N

SPILL CONTAINERS WITH FIBER COVER

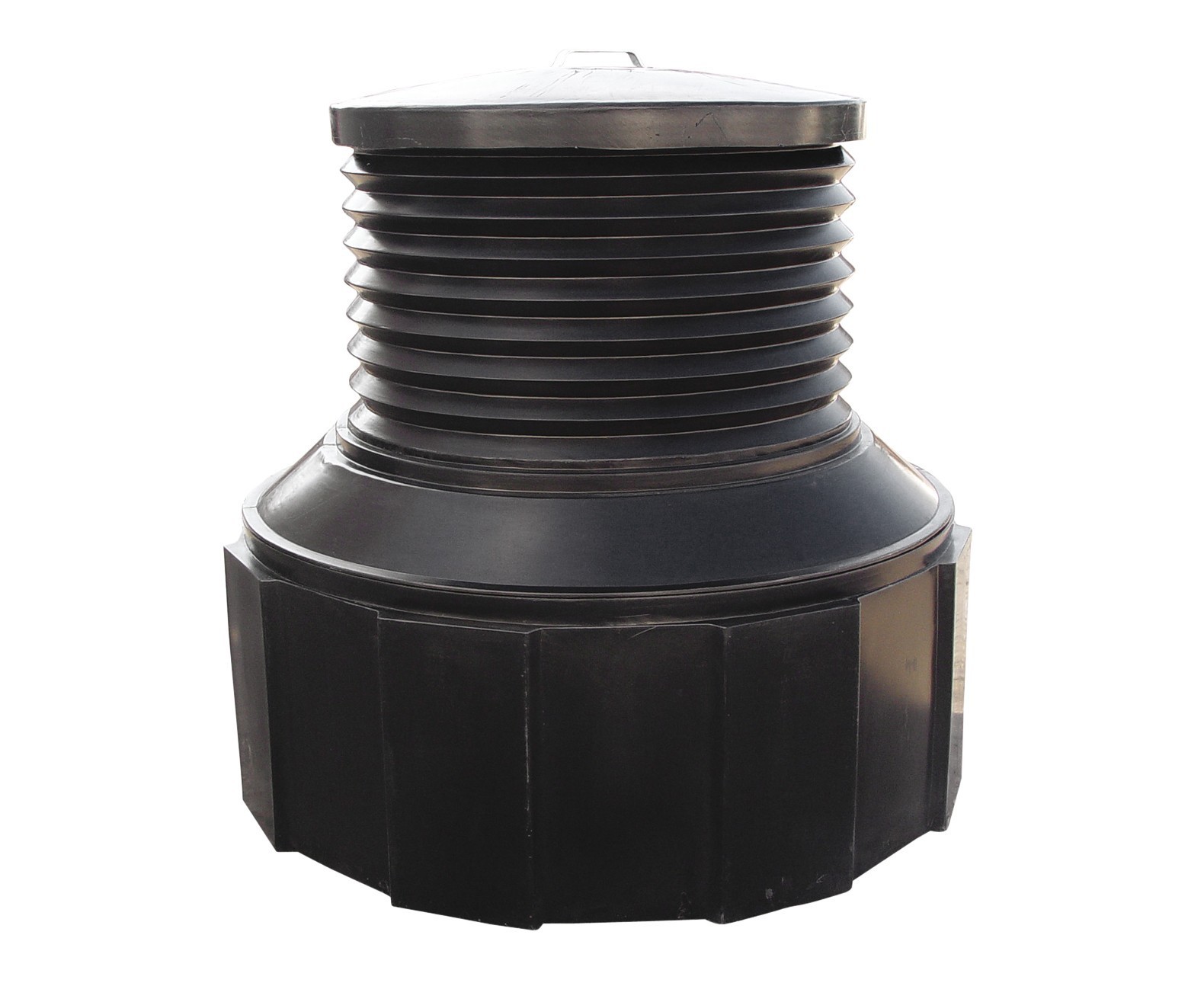

MANHOLE CONTAINERS

Manhole container	808313003
Size (approx.): length: 1225mm - top diameter: 820mm - bottom diameter: 1165mm Weight (approx.): 55Kg
PLUS manhole container	808313006
Size (approx.): length: 1500 mm - top diameter: 820 mm - bottom diameter: 1165 mm Weight (approx.): 65 kg
This fuel tank chest allows to install pumps, valves and other type of equipment that could be necessary for the connection of the tank with the supply kit It is composed of two pieces: base and neck, joined by a ring that assures its total sealing Material: polyethylene Colour: black Optionally it has flexible bulkhead fitting to make easy the cabling pass

MANHOLE CONTAINERS
