BREAKAWAY VALVES

BREAKAWAY VALVES

The breakaway valves are designed to be installed in fuel supply hoses and they will be separated when there was a strong pull.

The double seat valve automatically stops the fuel flow, limiting any fuel spillage and protecting the supply kit.

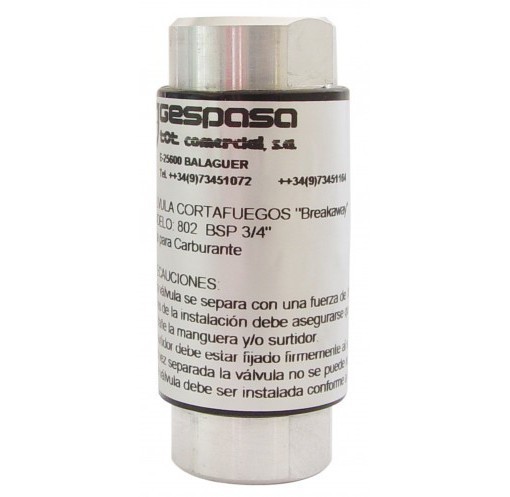

802 breakaway valve

805604016

804 breakaway valve

805604015

The valve is designed to be replaced after the separation

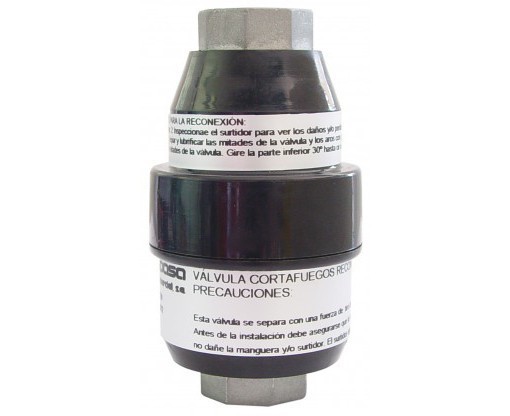

Reconnection breakaway valves

3/4'' reconnection breakaway valve

805604019

	Connection thread	Flow	Weight
3/4"	BSP 3/4"	0-60 l/min	530 g

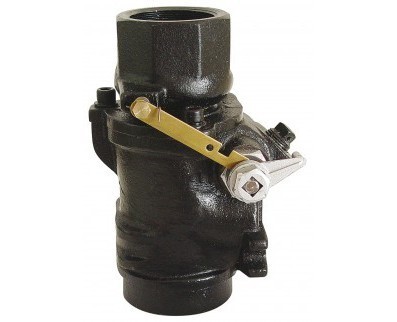

BREAKAWAY VALVE (submersible pump)

MF1 1/2'' breakaway valve

805603010

The «breakaway» (emergency shut-off) valve is obligatory in the installation of fuel supply kits that are equipped with a submersible pump.
This valve is installed on the fuel supply lines to minimize hazards associated with accidental collision or fire.
This valve stops the fuel flow.
When this valve works, this is separated in two halves, closing the fuel piping

Materials:

Technical data:
